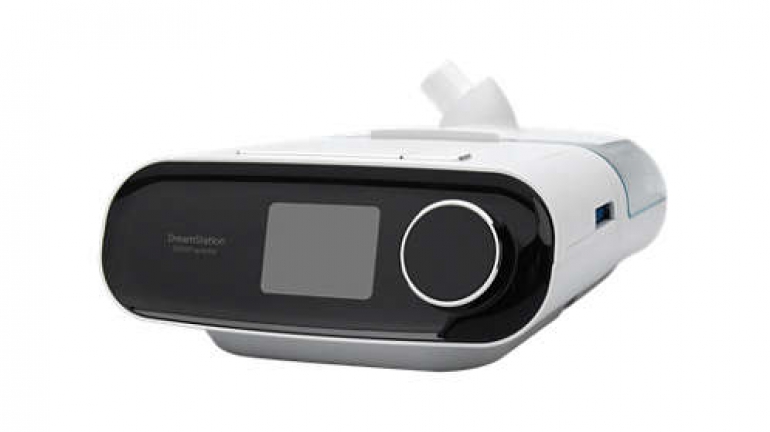

DreamStation BiPAP autoSV

For patients with central sleep apnea, complex sleep apnea and periodic breathing, DreamStation BiPAP autoSV is designed to deliver optimal ventilation with minimal intervention. Its clinically proven algorithm provides support when needed, and works with patient breathing patterns to minimize applied pressure, pressure support and machine breaths - so your patients can experience comfortable, restful sleep.

Auto pressure support for periodic breathing

Patients with complex sleep apnea often demonstrate periodic breathing patterns. Our clinically proven servo-ventilation algorithm is designed to adjust pressure support accordingly to stabilize breathing and deliver the minimum level of mechanical intervention.

Auto back-up rate to treat central events

In the presence of central events, it is important to deliver sufficient ventilation while still allowing natural pauses in breathing. Our BiPAP autoSV’s auto back-up rate is designed to provide support during central apneas while encouraging spontaneous breathing.

Auto EPAP for upper airways patency

Our patented DreamStation BiPAP autoSV features an auto EPAP algorithm designed to keep the upper airways open. This algorithm responds to obstructive events and proactively searches for the lowest possible therapy pressure.

Powerful patient-driven design

Designed for ease of use with feedback from hundreds of patients, DreamStation incorporates smart features like a patient-facing color screen, and a sleek, low-profile design.

Support for long-term use

DreamStation includes features such as Daily Progress Feedback and DreamMapper patient self-management system to help sleep apnea patients start therapy and stay motivated for the long term.

Designed to create efficiency

With remote troubleshooting tools like Performance Check, and connectivity options including Wi-Fi®, Bluetooth® and cellular, DreamStation can help reduce costly home visits and let you focus your attention where it needs to be.

General

Pressure range	4 to 30 H2O
Flex pressure relief	0 to 3
Ramp time	0 to 45 min (5-minute increments)
Starting ramp pressure	4 cm H2O to EPAP or EPAP MIN
Humidification	Heated humidification: fixed, adaptive
Data storage capacity (minimum)	SD card: 6 months, On-board: 3 months
Altitude compensation	Automatic
Filters	Reusable pollen; disposable ultra-fine
Device controls	LCD, control dial/push button
Warranty	2 years (US)

Dimensions and weight

Dimensions	15.7 x 19.3 x 8.4 cm (without humidifier); 29.7 x 19.3 x 8.4 cm (with humidifier)
Weight	1.33 kg/2.94 lbs (without humidifier); 1.98 kg/4.37 lbs (w/ humidifier); Including power supply

Electrical - IntelliBridge EC40/80

Voltage	100 – 240 VAC
Frequency	50/60 Hz
Amperage	2.0-1.0 A
